| Chipset: | AMD B550 |
| CPU Socket: | AM4 |
| Form Factor: | Micro-ATX |
| Dimensions: | Información no disponible |
| Memory Slots: | 4 x 288-Pin |
| Memory Type: | DDR4 |
| Memory Channel: | Dual |
| Maximum Memory: | 128GB |
| Memory Speed: | Supports DDR4 memory up to 4400(OC) MHz |
| SATA: | 4x SATA III 6Gb/s ports |
| M.2 Slots: | 2 |
| M2_1 slot: | Supports PCIe 4.0/3.0 x4 and SATA 6Gb/s; supports 2242/2260/2280 storage devices |
| M2_2 slot: | Supports PCIe 3.0x4; supports 2242/2260/2280 storage devices |
| RAID: | Información no disponible |
| 24-pin ATX main power connector: | 1 |
| 8-pin ATX 12V power connector: | 1 |
| USB 3.2 Gen 1 5Gbps Type-C port: | 1 |
| USB 3.2 Gen 1 5Gbps connector: | 1 (supports additional 2 USB 3.2 Gen 1 5Gbps ports) |
| USB 2.0 connectors: | 2 (supports additional 4 USB 2.0 ports) |
| 4-pin CPU fan connector: | 1 |
| 4-pin water-pump fan connector: | 1 |
| 4-pin system fan connectors: | 3 |
| Front panel audio connector: | 1 |
| System panel connectors: | 2 |
| Serial port connector: | 1 |
| Chassis Intrusion connector: | 1 |
| 4-pin RGB LED connectors: | 2 |
| 3-pin RAINBOW LED connectors: | 2 |
| TPM module connector: | 1 |
| Clear CMOS jumper: | 1 |

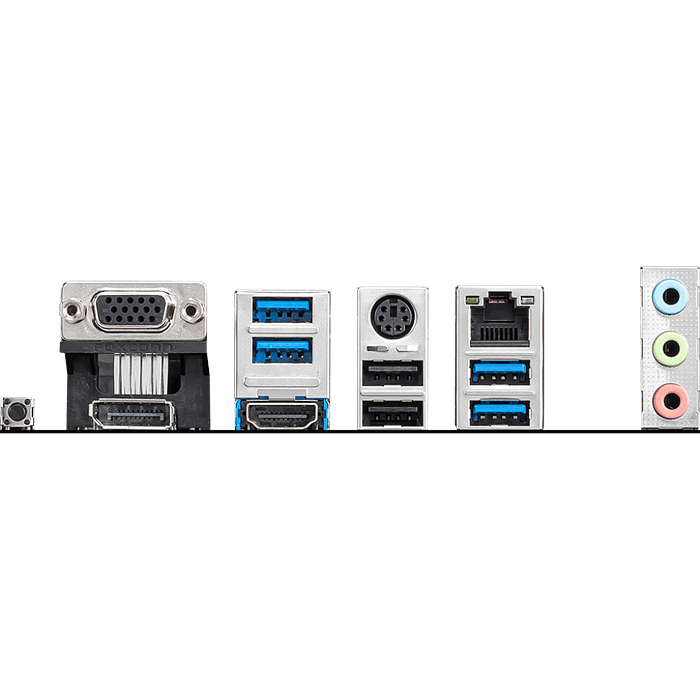

| USB (Panel Trasero): | 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1), 2x USB-A (USB 2.0) |
| Video Ports: | 1x DisplayPort, 1x HDMI™ 2.1 port, 1x VGA port |
| LAN: | Realtek® RTL8111HN Gigabit LAN |
| Audio: | 3x Audio jacks |
| Wi-Fi / Bluetooth: | Intel® Wireless-AC 3168, Bluetooth 4.2 |
| PCIe 4.0/3.0 x16 slot: | 1 |
| PCIe 3.0 x1 slots: | 2 |
| Audio: | Realtek ALC892/ALC897 7.1-Channel HD Audio, Audio Boost |
| Wireless: | Wi-Fi 5 (802.11ac) with MU-MIMO Support |
| Procesadores Compatibles: | AMD Ryzen™ 5000 & 3000 Series (excepto Ryzen™ 5 3400G & Ryzen™ 3 3200G) y AMD Ryzen™ 4000 G-Series |
| Características Adicionales: | Supports DDR4 Memory, Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Premium Thermal Solution, Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost, Flash BIOS Button |
