| GPU Model: | NVIDIA GeForce RTX 5080 |
| Architecture: | Blackwell 2.0 |
| Process Size: | 5 nm (TSMC 4N FinFET) |
| GPU Name: | GB203 (GB203-400-A1 variant) |
| CUDA Cores: | 10,752 |
| Tensor Cores: | 336 |
| RT Cores: | 84 |
| Shading Units: | 10,752 |
| Texture Mapping Units (TMUs): | 336 |
| Render Output Units (ROPs): | 112 |
| Base Clock: | 2295 MHz |
| Boost Clock: | Up to 2655 MHz (Extreme Performance in MSI Center), 2640 MHz (Boost) |
| Max Resolution: | 7680 x 4320 |
| Video RAM: | 16 GB GDDR7 |
| Memory Interface: | 256-bit |
| Memory Clock: | 1875 MHz (30 Gbps effective) |
| Memory Bandwidth: | 960.0 GB/s |
| Bus Interface: | PCI Express 5.0 x16 |
| TDP (Total Graphics Power): | 360 W |
| Power Connector: | 1x 16-pin PCIe |
| Recommended PSU: | 850 W |

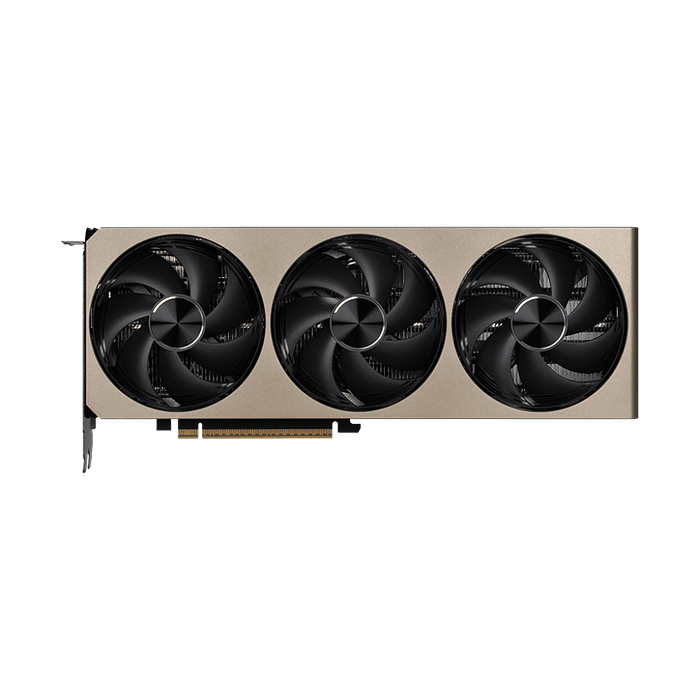

| Cooling Type: | Open Fansink with Three Fans (MSI's STORMFORCE FAN, Nickel-plated Copper Baseplate, Core Pipes, WAVE-CURVED 3.0, AIR ANTEGRADE FIN) |
| Slot Width: | Dual-slot (or 2.5-slot) |
| Length: | 288 mm (11.3 inches) |
| Height: | 112 mm (4.4 inches) |
| Width: | 40 mm (1.6 inches) |

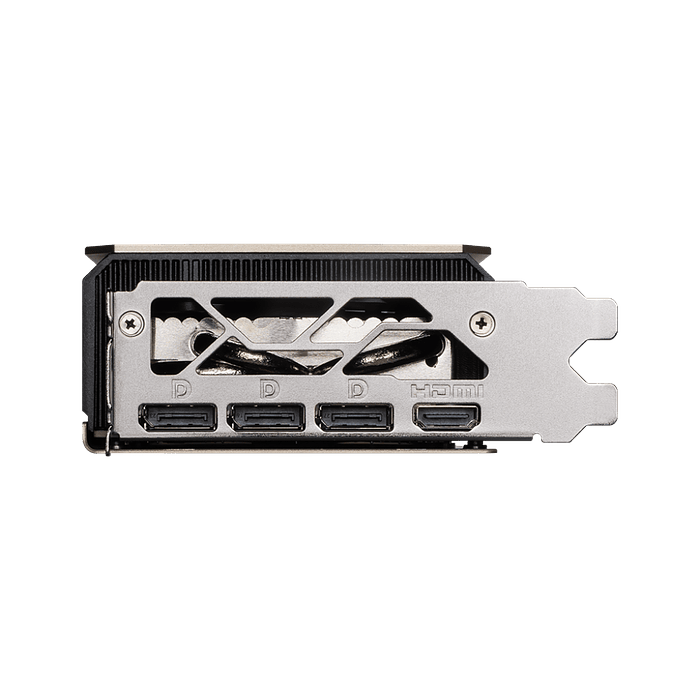

| Display Outputs: | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| DirectX Support: | DirectX 12 Ultimate (12_2) |
| OpenGL Support: | OpenGL 4.6 |
| G-SYNC Support: | Yes |
| DLSS: | DLSS 4 |
